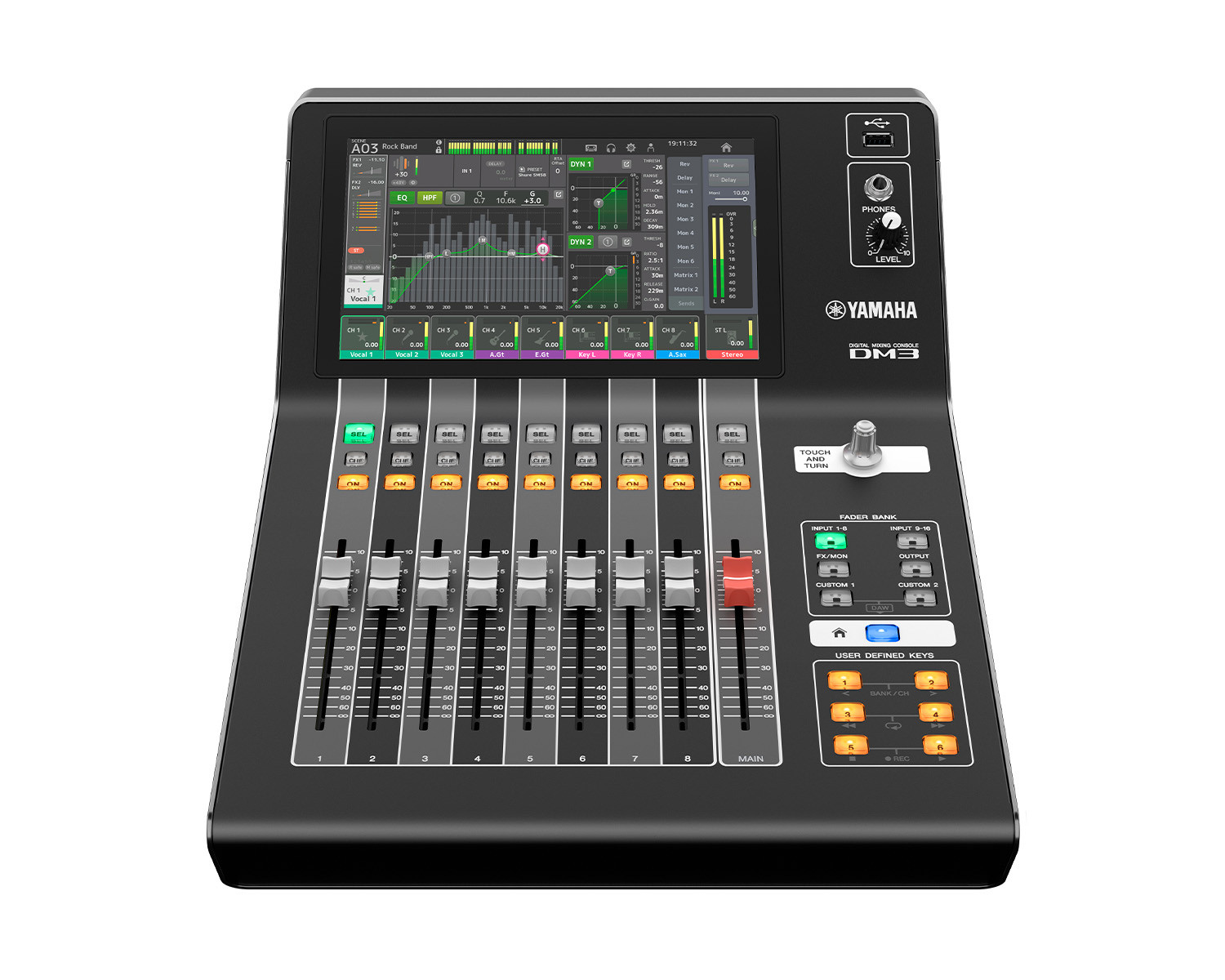

Yamaha DM3S Standard Compact Digital Mixer 16 Mono/ 1 Stereo/2 FX Return

The portable Yamaha DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.

Hire Now

Rental
4-Day: £78.00 inc. VAT
Week: £156.00 inc. VAT

What's Included

Rental1 xYamaha DM3S Standard Compact Digital Mixer 16 Mono/ 1 Stereo/2 FX Return
Rental4 x10m Audio Signal Cable 3-Pin XLRs
Rental1 x3.5mm Jack to Twin 6.3mm Jack Cable
Rental2 x3m Audio Signal Cable 3-Pin XLRs
Rental1 xFigure 8 Cable
Rental1 xSennheiser HD280 Pro Monitoring Headphones
Rental1 xUniversal Jack Adaptor 3.5mm (1/8 Inch) to 6.3mm (1/4 Inch)
Rental1 xYamaha DM3 Power Supply

Recommended for this Product

Suggested Upgrade
Allen & Heath QU16 Digital Mixing Desk

Allen & Heath QU16 Digital Mixing Desk

Upgrade to a larger digital desk

Move up to a larger digital desk with more channels and greater flexibility for live sound and event production.

Rental4-Day: £78.00inc. VAT
View
Recommended Extra
RCF ART 910-A Sound System

RCF ART 910-A Sound System

Add a capable sound system

Pair your mixer with a powerful, high-quality PA system for speech, music playback and live sound setups.

Rental4-Day: £120.00inc. VAT
View
Recommended Extra
JBL PRX912 Sound System

JBL PRX912 Sound System

Add a more powerful sound system

Pair your mixer with a higher-output PA system for events that need more headroom, impact and coverage.

Rental4-Day: £144.00inc. VAT
View
Recommended Extra
QSC K8.2 Sound System

QSC K8.2 Sound System

Add a premium speech sound system

Pair your mixer with a compact, high-quality PA system for conferences, presentations and speech-led events.

Rental4-Day: £132.00inc. VAT
View
Recommended Extra
Behringer DI100 Ultra DI Box

Behringer DI100 Ultra DI Box

Add a DI box

Useful for connecting keyboards, laptops, instruments and playback devices cleanly into the mixer.

Rental4-Day: £6.00inc. VAT
View
Recommended Extra
Shure SM58 Dynamic Vocal Microphone

Shure SM58 Dynamic Vocal Microphone

Add a professional vocal microphone

The industry standard microphone for singers, performers, presenters and professional vocal use.

Rental4-Day: £9.60inc. VAT
View
Recommended Extra
QSC K8.2 Speaker

QSC K8.2 Speaker

Add a compact monitor speaker

A compact, high-quality speaker option for stage monitoring, speech foldback and performer cues.

Rental4-Day: £66.00inc. VAT
View
Recommended Extra
AKG D112 MKii Kick Drum Microphone

AKG D112 MKii Kick Drum Microphone

Add a kick drum microphone

A dedicated kick drum microphone for fuller drum kit reinforcement and live band setups.

Rental4-Day: £12.00inc. VAT
View
Recommended Extra
Sound Level Meter

Sound Level Meter

Add a sound level meter

A useful tool for checking sound levels during rehearsals, events and live sound setups.

Rental4-Day: £3.60inc. VAT
View

Description

Product Features

  • 8 + 1 fader configuration
  • 9-inch multi-touch screen
  • Input mixing channels: 16 mono + 1 stereo + 2 FX return
  • Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
  • Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
  • USB: 18 inputs, and 18 outputs
  • 8 DCA groups with Roll-out
  • 18 Effects, and GEQ on Mix 1-6 and Stereo channels
  • Sampling rate: 48kHz/96kHz
  • Dimensions (W x H x D): 320 mm × 455 mm × 140 mm
  • Net weight: 14.3lbs

Product Specifications

Outline

  • Mixing CapacityInput Channels:  16 mono + 1 stereo + 2 FX return
  • Mix Buses: 6
  • Matrices: 2 (Supports input to matrix)
  • Stereo Buses: 1
  • FX Buses: 2
  • Cue Buses: 1

General specifications

  • I/O ConnectorsAnalog Input:  16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
  • Analog Output:  8 (XLR)
  • Network:  1 (RJ-45)
  • USB TO HOST:  1 (USB Type-B, USB2.0)
  • USB TO DEVICE:  1 (USB Type-A)
  • Phones:  1 (TRS Phones)
  • DC:  1 (XLR 4pin, DC power IN)
  • User Interface:  1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x \"Touch and Turn\" rotary encoder
  • Recording & Playback:PC/Mac:  Recording 18 track, Playback 18 track
  • USB storage device:  Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
  • Sampling frequency rate:  96 kHz / 48 kHz
  • Signal delay: Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
  • Frequency response:  +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
  • Total harmonic distortion:  Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min
  • Hum & noise level: Equivalent input noise:  -126 dBu typ., Input Gain= Max.
  • Residual output noise:  -84 dBu, ST main off
  • Dynamic range:  110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
  • Crosstalk:  -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz
  • Power requirements:  DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
  • Power consumption:  43 W
  • Dimensions:W: 320 mm (12.6\")
  • H: 140 mm (5.6\")
  • D: 455 mm (18.0\")
  • Net weight:  6.5 kg (14.3 lb)
  • Operating temperature:  0 - 40 °C
  • Storage temperature:  -20 - 60 °C
