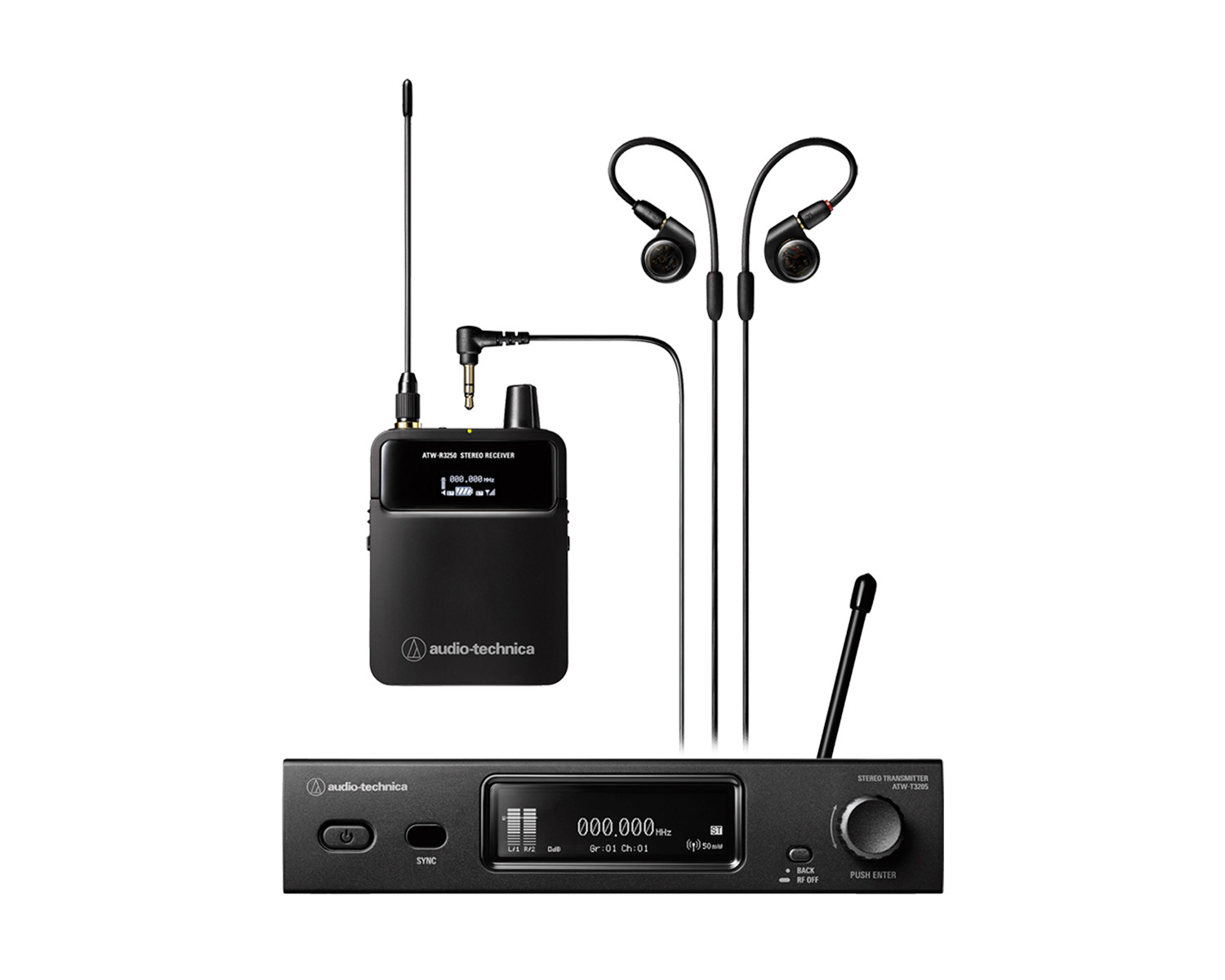

Audio-Technica ATW-3255 3000 Series In-Ear Monitoring System

The Audio-Technica 3000 Series Wireless In-Ear Monitor System (ATW-3255) was designed to bring professional sound quality and features to all levels of performers and performance venues. System integrators for houses of worship, owners of live-performance venues and the musicians who play in them all tell us the same thing: They need an affordable, durable in-ear monitor system that is easy to use and, crucially, delivers high-quality sound with dependable RF.

Hire Now

Rental

4-Day: £42.00 inc. VAT

Week: £84.00 inc. VAT

What's Included

Rental1 x12V AC/DC 1A Power Supply

Rental1 x3m Audio Signal Cable 3-Pin XLR

Rental1 xAudio Technica IEM Ear Buds

Rental1 xAudio-Technica 3000 Series In-Ear Monitoring Receiver

Rental1 xAudio-Technica ATW-T3205 3000 Series In-Ear Monitoring Transmitter

Rental1 xPowercon Link Cable

Rental1 xShort 13A to PowerCon Cable

Description

With design elements modeled after our popular 3000 Series UHF Wireless Microphone Systems, the 3000 Series IEM features a rack-mount transmitter with front-panel controls and large OLED display, body-pack receiver with an efficient headphone amp (it also conveniently charges in the same ATH-CHG3 and ATH-CHG3N charging stations as the 3000 Series UHF body-pack transmitters), and ATH-E40 professional in-ear monitor headphones with propriety dual phase push-pull drivers. Together these elements provide clear, natural sound quality on any stage.

The 3000 Series Wireless IEM offers exceptionally wideband UHF coverage (138 MHz), available in frequency bands DF2 (470 – 608 MHz) and EG2 (580 – 714 MHz); receiver antenna diversity to ensure RF stability; and stereo or mono operation with pan/personal mix controls. Additional features include network monitoring and control via the Audio-Technica Wireless Manager software, a cue mode that allows an audio engineer to monitor several IEM channels from a single receiver, and a 3000 Link mode that enables compatibility with 3000 Series wireless microphone components.

Mixing and performing on a smaller scale shouldn’t have to mean sacrificing sound quality. Through the 3000 Series Wireless In-Ear Monitor System, Audio-Technica continues to deliver on its promise of making high-quality audio accessible to all.

Product Specifications

Overall System

Operating Frequencies
Band DF2: 470.125 to 607.875 MHz
Band EG2: 580.000 to 713.850 MHz
Minimum Frequency Step: 25 kHz
Modulation Mode: FM
Nominal/Peak Deviation: ±34 kHz nominal / ±45 kHz peak
Frequency Response: 40 Hz to 14,100 Hz
Stereo Separation: 75 dB
Operating Range: 90 m (300') Open range environment with no interfering signals
Dynamic Range: >90 dB, A-weighted, typical
Total Harmonic Distortion: <0.2% (at 1 kHz, +4dBu input)
Maximum Simultaneous Use (recommended): 9 ch per band

IEM Transmitter

RF Output Power: High: 50 mW, Low: 10 mW (switchable) at 50 ohmsMay differ depending on the country or region in which you live.
Input Connection: XLR-F type×2 (Pin1: GND, Pin2: Hot, Pin3: Cold)
Maximum Input Level: XLR-F type: +24 dBu (at 0 dB sensitivity)
Output Connection: 6.3 mm (1/4") TRS×2 (Tip: Hot, Ring: Cold, Sleeve: Ground）
Network: 100BASE-T
Network Port: RJ-45
Power Supply: 100 to 240 V AC (50/60 Hz) to 12V DC 1 A (center positive) switched mode external power supply
Antenna Output: BNC-type, 50 ohms
Dimensions: 210 mm (8.3")×191 mm (7.5")×43.4 mm (1.7") (W×D×H)
Weight: 1,100 g (39 oz) (without accessories)
Included Accessories:
AC adapter
Rack-mount (large, small)
Flexible UHF antenna

Receiver

Receiving System: Antenna diversity
Audio output cable performs as a secondary antenna to ensure stable RF performance.
Image Rejection: >80 dB, typical
RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Headphone Output Jack: 3.5 mm (1/8") TRS stereo mini-jack
Headphone Output: 40 mW (at 12 ohms)
EQ
Low: 80 Hz / 160 Hz / 320 Hz / ±9 dB in 3 dB step
High: 6 kHz
