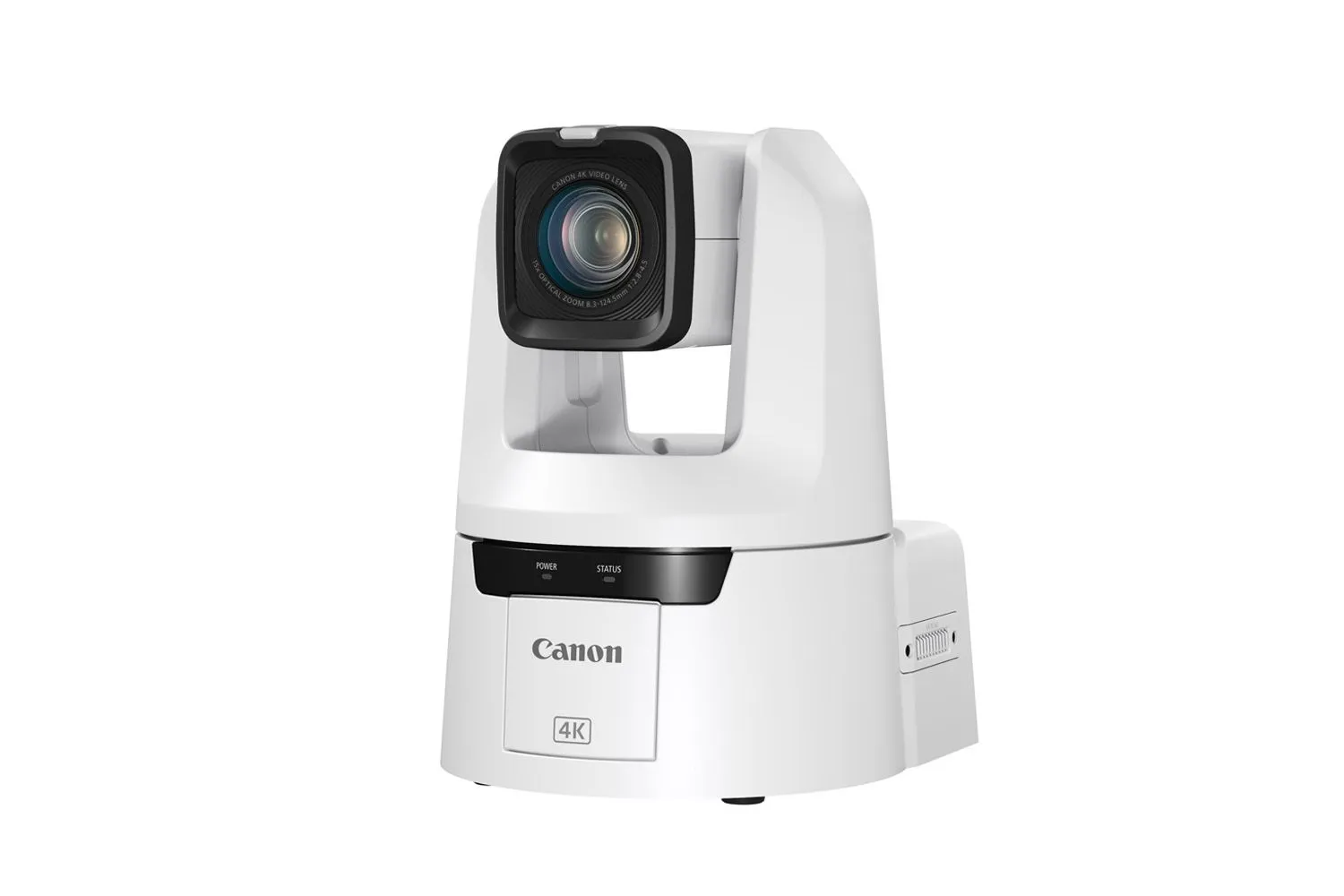

Canon CR-N500 4K PTZ Camera with 15x Optical Zoom

Capture every moment in stunning detail with the Canon CR-N500 - a professional 4K PTZ camera ideal for live events, conferences, and corporate productions. Featuring a 1.0-inch CMOS sensor, 15x optical zoom, smooth remote pan/tilt control, and exceptional low-light performance, it delivers broadcast-quality visuals for high-end presentations and hybrid streaming setups. Perfect for discreet, high-impact coverage at premium events.

Hire Now

Rental
4-Day: £234.00 inc. VAT
Week: £468.00 inc. VAT

Choose Optional Add-ons

Useful accessories selected by default for convenience.

3G SDI Cable (50m Drum)4-Day Hire:
£6.60 inc. VAT
50m CAT6 External Ethernet Cable on Drum4-Day Hire:
£4.20 inc. VAT

What's Included

Rental1 xCanon CR-N500 4K PTZ Camera with 15x Optical Zoom
Rental1 x24V AC/DC 1.8A Power Supply for Canon PTZ Cameras
Rental1 xCanon PTZ Remote Control WL-N01
Rental1 xFigure 8 Cable

Recommended for this Product

Recommended Extra
Zowietek PTZ Camera Controller

Zowietek PTZ Camera Controller

Add PTZ camera control

Add a PTZ camera controller for hands-on pan, tilt and zoom control of the Canon CR-N500.

Rental4-Day: £42.00inc. VAT
View
Recommended Extra
E-image Tripod with Mini Jib Arm

E-image Tripod with Mini Jib Arm

Add a camera support system

Add an E-image tripod and mini jib arm for flexible camera positioning in production and event capture setups.

Rental4-Day: £18.00inc. VAT
View

Description

Camera

  • Image Sensor: Type 1.0 (1.0 in.) single-plate CMOS sensor
  • Effective Pixels: approx. 8.29 megapixels (3840 × 2160)
  • Lens: f = 8.3 – 124.5 mm, F/2.8 – 4.5, 15x optical zoom, 9-bladed iris diaphragm
  • 35 mm Equivalent Focal Length: approx. 25.5 (W) – 382.5 mm (T)
  • Optical Zoom: 15×
  • Digital Zoom: 20×
  • Minimum Subject Illumination:
  • 3840 × 2160: approx. 1.5 lux (1/30 sec, 29.97P, Gain 33 dB)
  • 1920 × 1080: approx. 3 lux (1/60 sec, 59.94P, Gain 33 dB)
  • Shutter Speed: 1/3 – 1/2000 sec (depending on frame rate)
  • Iris: Manual / Automatic
  • Gain: –6.0 dB to 33.0 dB
  • ND Filter: Built-in (Off, 1/4, 1/16, 1/64) motor operated
  • White Balance: Auto, Set A, Set B, Presets (5600 K daylight / 3200 K tungsten), Manual (2000 K – 15000 K)
  • Focus Modes: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking AF
  • AF System: Dual Pixel CMOS AF / Contrast AF
  • Gamma: Normal1 (Standard), Normal2, Normal3 (BT.709), Normal4, Wide DR, Canon Log 3
  • Image Stabiliser: Optical-shift (4-axis stabilisation)
  • Pan / Tilt Range: Horizontal ±170°, Vertical –30° to +90°
  • Pan Speed: 0.1° – 100°/sec
  • Tilt Speed: 0.1° – 100°/sec

Video Output & Streaming Formats

  • SDI Output:
  • 1920 × 1080: 59.94P / 59.94i, 50.00P / 50.00i / 25.00P, 29.97P / 23.98P (4:2:2 10-bit)
  • 1280 × 720: 59.94P, 50.00P (4:2:2 10-bit)
  • HDMI Output:
  • 3840 × 2160: 29.97P, 25.00P, 23.98P (4:2:2 10-bit)
  • 1920 × 1080: 59.94P / 59.94i, 50.00P / 50.00i / 25.00P, 29.97P / 23.98P (4:2:2 10-bit)
  • 1280 × 720: 59.94P, 50.00P (4:2:2 10-bit)
  • IP (Network) Output:
  • 3840 × 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
  • 1920 × 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)
  • 1280 × 720 / 640 × 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8-bit)

Connectivity & Control

  • Communication / Control Interfaces: LAN, Wi-Fi, Serial, IR
  • Network Terminal: LAN × 1 (RJ-45, 1000Base-T)
  • SDI OUT Terminal: BNC × 1 (0.8 Vp-p / 75 Ω, unbalanced), SMPTE 424/425 compliant, embedded audio and time code
  • Gen-Lock Terminal: BNC × 1 (1.0 Vp-p / 75 Ω input)
  • HDMI OUT Terminal: HDMI × 1 (output only)
  • RS-422 Terminal: RJ-45 × 1
  • Audio Input 1/2: XLR (3-pin) × 2, balanced
  • MIC sensitivity: –60 dBu (600 Ω) / Att: 20 dB
  • LINE sensitivity: +4 dBu (1 kΩ or more)
  • Phantom power: 48 V DC
  • MIC Terminal: 3.5 mm stereo mini jack (unbalanced, plug-in power)
  • MIC sensitivity: –72 dBV / LINE: –10 dBV
  • Supply voltage: 2.4 V DC

Other Features & Compatibility

  • Presets: Up to 100 positions (including home)
  • Auto Tracking: Face / Head Detection and Subject Tracking (licensed feature)
  • Auto Loop: Programmed pan/tilt/zoom sequences (licensed feature)
  • Streaming & Control Protocols: RTMP / RTMPS, NDI|HX, RTP/RTSP, SRT, FreeD, XC Protocol
  • HDR Support: Canon Log 3 and Wide Dynamic Range

Physical & Operational

  • Colour Options: Satin Black / Titanium White
  • Operating Environment: Indoor use
  • Dimensions (W × H × D): Approx. 179 × 247 × 208 mm
  • Weight: Approx. 2.9 kg
  • Power Supply: PoE++ (IEEE 802.3bt) or DC IN (24 V DC)
  • Power Consumption: Approx. 38 W (PoE++) / 36 W (DC IN)
  • Mounting: Ceiling / Tripod / Desktop with optional bracket
