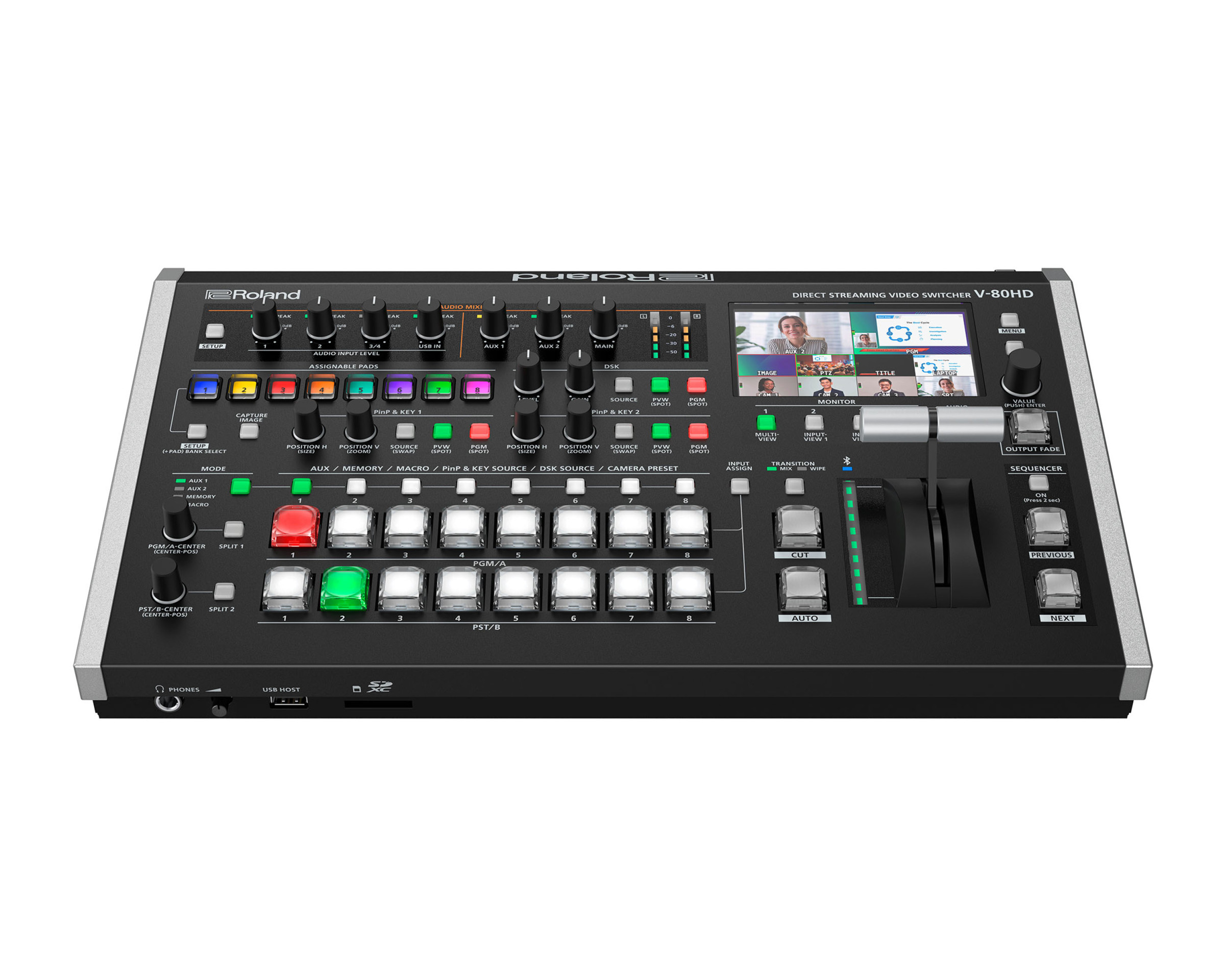

Roland V-80HD Streaming Video Switcher with 28Ch Digital Audio Mixer

The all-in-one design of the Roland V-80HD is easy to set up, while flexible I/O features support 3G SDI, HDMI, USB 3.0, and LAN (RTMP/SRT) connections. The V-80HD also includes multi-channel audio mixing and effects, integrated control for PTZ cameras, and remote operation with video monitoring via dedicated control apps. With the companion Graphics Presenter software, you can enhance productions with titles, motion graphics, and more. Includes full integration with the Yamaha DM3 mixer.

Hire Now

Rental
4-Day: £120.00 ex. VAT
Week: £240.00 ex. VAT

Choose Optional Add-ons

Useful accessories selected by default for convenience.

Sennheiser HD280 Pro Monitoring Headphones4-Day Hire:
£5.50 ex. VAT

What's Included

Rental1 xRoland V-80HD Streaming Video Switcher with 28Ch Digital Audio Mixer
Rental1 xFigure 8 Cable
Rental1 xRoland V80HD 24v Power Supply
Rental5 xShort HDMI Cables
Rental1 xUniversal Jack Adaptor 3.5mm (1/8 Inch) to 6.3mm (1/4 Inch)
Rental1 xUSB-A to USB-C 3.0 Cable

Recommended for this Product

Recommended Extra
Blackmagic BiDirectional Converter SDI/HDMI

Blackmagic BiDirectional Converter SDI/HDMI

Add SDI/HDMI conversion

Add Blackmagic SDI/HDMI converters to help get video to the display from a laptop or video source positioned further away.

Rental4-Day: £12.50ex. VAT
View

Description

Product Features

  • Professional eight-channel switcher with a compact footprint and comprehensive features
  • Supports a variety of applications, including in-person events, conferences, web streaming, houses of worship, and studio production setups
  • Four 3G SDI inputs with frame rate converters
  • Four 1080p HDMI inputs, including two 4K inputs with HD downscalers and through outputs
  • Seven total outputs include SDI, HDMI, USB-C streaming, and LAN (RTMP/SRT)
  • Two 3G SDI and three HDMI outputs plus 10 assignable buses
  • 28-channel digital audio mixer and three output buses with effects and processing
  • Five-layer video effects engine, including two PinP windows with key composition and DSK
  • Easily create stunning titles and motion graphics with the companion Graphics Presenter software for Windows
  • 32-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
  • Powerful live production automation with sequencing, macros, and scene memories
  • Integrated PTZ camera control with simultaneous support for multiple brands and mixed protocols
  • Eight assignable pads for controlling up to 64 discreet functions
  • Extensive device control with Bluetooth, USB, RS-232, and LAN
  • Wireless and wired camera tally support
  • Remote control software available for iPad, macOS, and Windows

Product Specifications

VIDEO

  • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
  • Number of Video Channels: 8 channels

Video Input Formats:

  • HDMI IN 1--4480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
  • 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
  • 1080/23.98p, 1080/24p
  • 2160/59.94p, 2160/60p, 2160/29.97p, 2160/30p *1, *3
  • 2160/50p, 2160/25p *2, *3
  • 2160/23.98p, 2160/24p *3
  • VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
  • WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
  • FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
  • UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
  • * The refresh rate is the maximum value of each resolution.
  • * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
  • * 1920 x 1200/60 Hz: Reduced blanking
  • * The input interlaced video signal is converted to progressive video signal by internal processing.
  • * The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
  • * HDMI IN 1 support Roland FILL+KEY signal
  • *1 Frame Rate = 59.94 Hz, 60 Hz
  • *2 Frame Rate = 50 Hz
  • *3 Only for HDMI IN 3, 4
  • SDI IN 1--4720/59.94p *1, *3
  • 720/50p *1, *4
  • 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
  • 1080/50i, 1080/50p, 1080/25p *2, *4
  • 1080/23.98p, 1080/24p *2
  • * The input interlaced video signal is converted to progressive video signal by i
