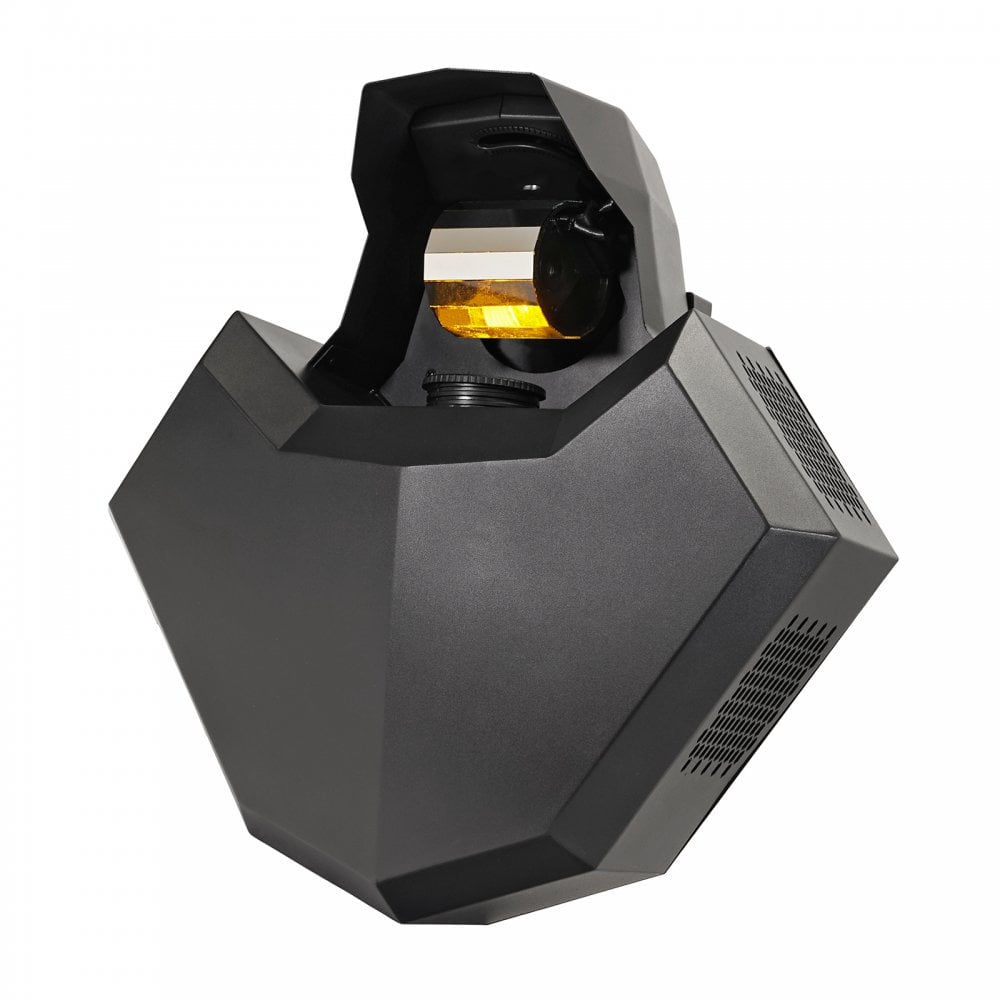

Helix Evo XP 150W Barrel Scanner Disco Light

A fast, punchy barrel effect for dancefloors and DJ rigs, throwing sweeping multi-coloured gobos across the room from a rotating mirror dish. The 150W cool white LED keeps the beams sharp and visible even under house lights, and eight interchangeable gobos plus a nine-colour wheel give plenty of looks from one fixture. Runs standalone in auto or sound-active mode, or drops straight into a DMX rig with selectable channel modes.

Hire Now

Rental
4-Day: £42.00 inc. VAT
Week: £84.00 inc. VAT

What's Included

Rental1 xHelix Evo XP 150W Barrel Scanner Disco Light
Rental1 x13A Plug to True1 Cable
Rental1 xK&M Lighting Stand 24630
Rental1 xM10 20mm Bolt
Rental1 xSafety Cable
Rental1 xTrue1 to True1 Link Cable

Description

The Helix Evo XP is a 150W LED barrel scanner built for mobile DJs and small venues that want a fast-moving, high-impact effect without the cost or bulk of a moving head. A powerful cool white LED source is thrown through a rotating mirror dish, sweeping multi-coloured gobo projections across the dancefloor, walls or ceiling.

Eight interchangeable gobos and a separate nine-colour wheel (plus open) give a wide range of looks, and an extra 11-piece gobo pack is supplied so it can be reset for different events. Programming lets you pick a single gobo and add specific colours automatically or via sound, and manual focus keeps the projections crisp at working distance.

  • 150W cool white LED source (7,700K)
  • 8 interchangeable rotating gobos, 9 colours plus open
  • DMX channels: 3/9 or 12 selectable
  • Auto, sound-active and primary/secondary modes plus built-in programs
  • Pan 180°, tilt 360° continuous
  • 0-100% dimming, variable strobe
  • Manual focus, 160° coverage angle, 1kHz refresh rate
  • PowerCON (PowerTwist) and 3-pin XLR DMX in/out for easy daisy-chaining
  • Quick release omega clamp and heavy duty mounting bracket supplied
  • Fan cooled, OLED display with 4-button menu
  • Power consumption: 149W
  • Dimensions: 467 x 456 x 208mm

Rigs quickly on a T-bar or truss with the supplied omega clamp. Runs from standard 13A supply. No flight case included as standard; case hire should be quoted separately if needed for transport.
