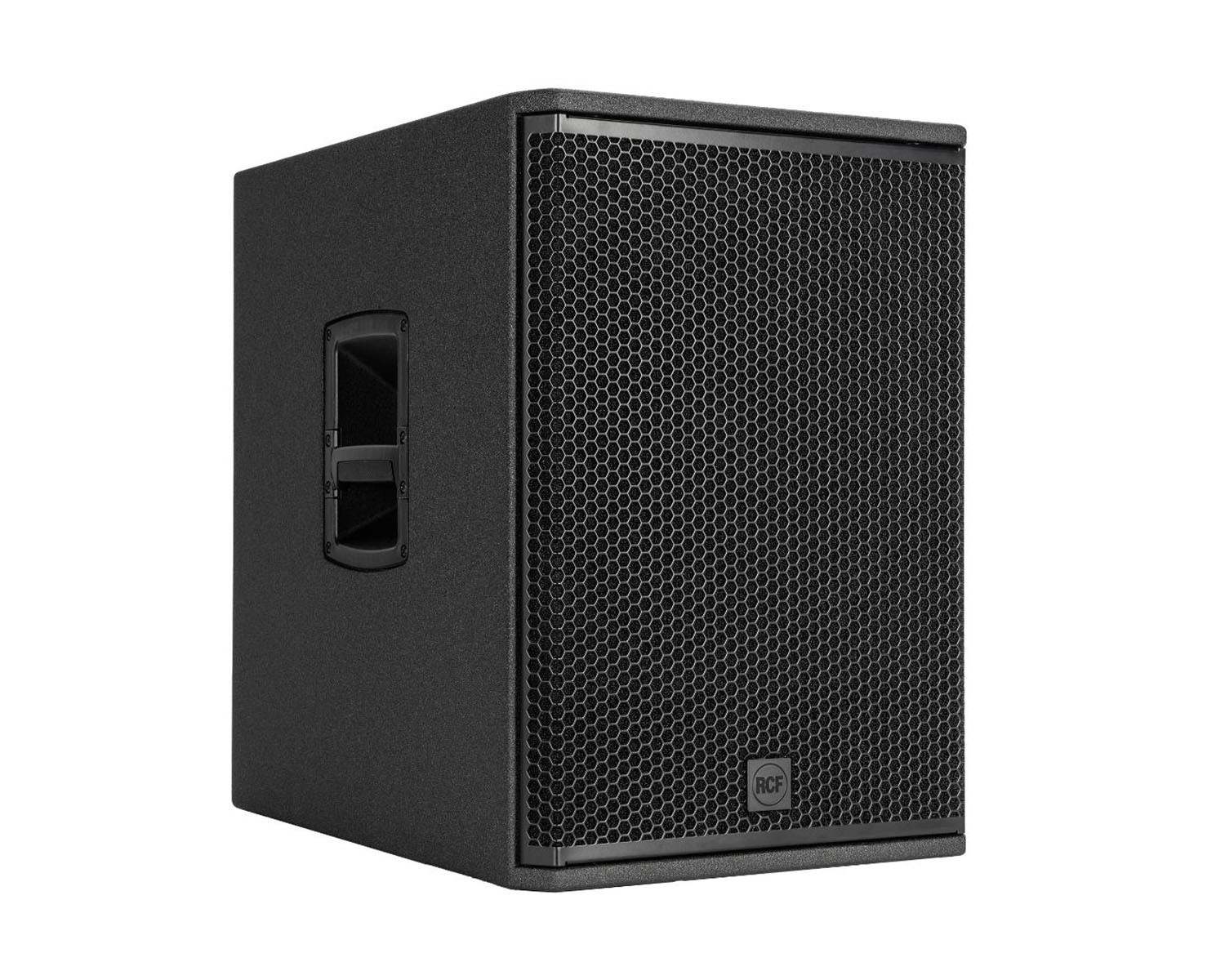

RCF SUB 705-AS MK3 15" Birch Ply 700W Powered Subwoofer

The SUB 705-AS mk3 is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 131 dB with exceptional headroom. Designed as the ideal complement for 10" or 12" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, delay, and crossover frequency selection.

Hire Now

Rental

4-Day: £54.00 inc. VAT

Week: £108.00 inc. VAT

What's Included

Rental1 xRCF SUB 705-AS MK3 15" Birch Ply 700W Powered Subwoofer

Rental1 x3m Audio Signal Cable 3-Pin XLR

Rental1 x3m IEC Cable (Medium)

Rental2 x6m Audio Signal Cable 3-Pin XLRs

Rental1 xSub Speaker Satellite Pole with M20 Thread

Recommended for this Product

Suggested Upgrade

JBL PRX918XLF 18" 1000W Powered Subwoofer

Upgrade to a larger subwoofer

Choose a larger subwoofer for more low-end output and greater bass impact at parties, DJ events and live music setups.

Rental4-Day: £72.00inc. VAT

View

Description

1400 Watt Class-D Amplifier
15” Woofer, bass reflex housing
Stereo Crossover
Switchable Crossover Frequencies
Polarity-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output
Bass Motion Control excursion management

Acoustical specifications

Frequency Response: 40 Hz ÷ 120 Hz
Max SPL @ 1m: 131 dB

Transducers

Woofer: 15\\\\\\\'\\\\\\\', 3.0\\\\\\\'\\\\\\\' v.c

Input/Output section

Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Processor section

Hi-Pass Frequencies: 110 Hz
Low-Pass Frequencies: 80 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ, Phase, Xover

Power section

Total Power: 1400 W Peak, 700 W RMS
Low frequencies: 1400 W Peak, 700 W RMS
Cooling: Convection
Connections: VDE

Standard compliance

Safety agency: CE compliant

Physical & Dimensions

Cabinet/Case Material: Baltic birch plywood
Handles: One each side
Pole mount/Cap: Yes
Grille: Steel with clothing
Colour: Black
Height: 598 mm / 23.54 inches
Width: 420 mm / 16.54 inches
Depth: 590 mm / 23.23 inches
Weight: 27.5 kg / 60.63 lbs
