Speakers

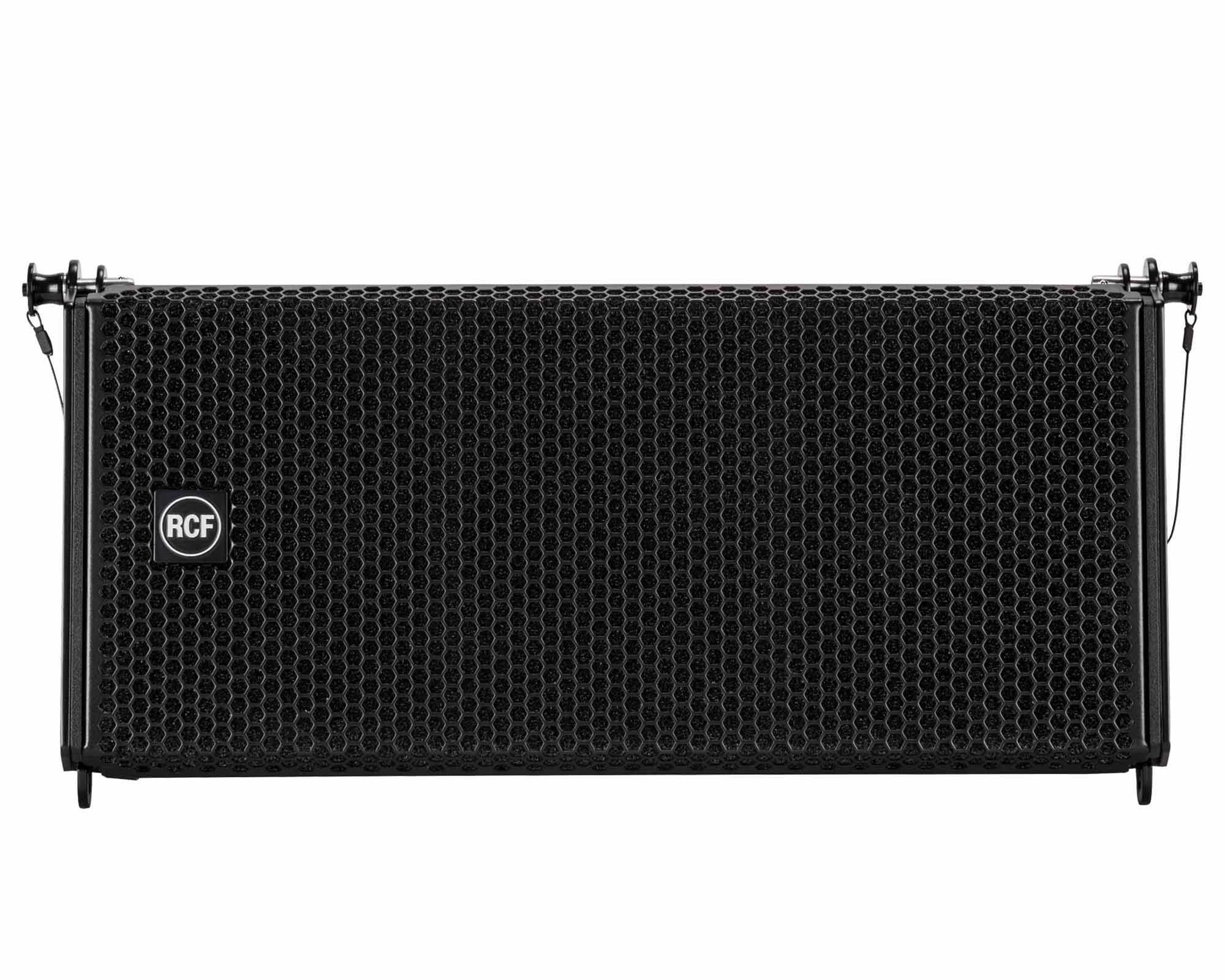

RCF HDL 6-A 2x6" Active 2-Way Line Array Module 1400W Black

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400W 2 channel class-D amplifier powers the system with powerful DSP processing the sound including crossover, phase correction, limiting and protection.

Hire Now

Rental
4-Day: £48.00 inc. VAT
Week: £96.00 inc. VAT

What's Included

Rental1 xRCF HDL 6-A 2x6" Active 2-Way Line Array Module 1400W Black
Rental1 x10m Audio Signal Cable 3-Pin XLR
Rental1 x16A 1ph Plug to PowerCon
Rental1 x1m Audio Signal Cable 3-Pin XLR
Rental1 xPowercon Link Cable

Recommended for this Product

Required for Operation
RCF FLBHDL6 Suspension Bar for HDL6-A (Black)

RCF FLBHDL6 Suspension Bar for HDL6-A (Black)

Required rigging for setup

Add the matching RCF HDL6-A suspension bar required to support flown or ground-stacked HDL6-A line array configurations.

Rental4-Day: £24.00inc. VAT
View

Description

  • 1400 W, two-way amplification
  • 131 dB max SPL
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0" woofers
  • 48 kHz, 32 bit floating point DSP processing
  • Symmetrical design
  • Extremely low weight
  • FiRPHASE processing

General

  • Frequency Response: 65 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 131 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 10°
  • Compression Driver: 1.0'' neo, 1.75'' v.c
  • Woofer: 2 x 6.0'' neo, 2.0'' v.c
  • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: +4 dBu
  • Crossover Frequencies: 900 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: HF correction
  • Total Power: 1400 W Peak, 700 W RMS
  • High frequencies: 400 W Peak, 200 W RMS
  • Low frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
  • CE marking: Yes
  • Cabinet/Case Material: PP Composite
  • Hardware: Array fittings
  • Handles: 2 Back
  • Grille: Steel
  • Color: Black

Physical & Dimensions

  • Height: 237mm
  • Width: 470mm
  • Depth: 377mm
  • Weight: 11.6kg
RCF HDL 6-A 2x6" Active 2-Way Line Array Module 1400W Black
