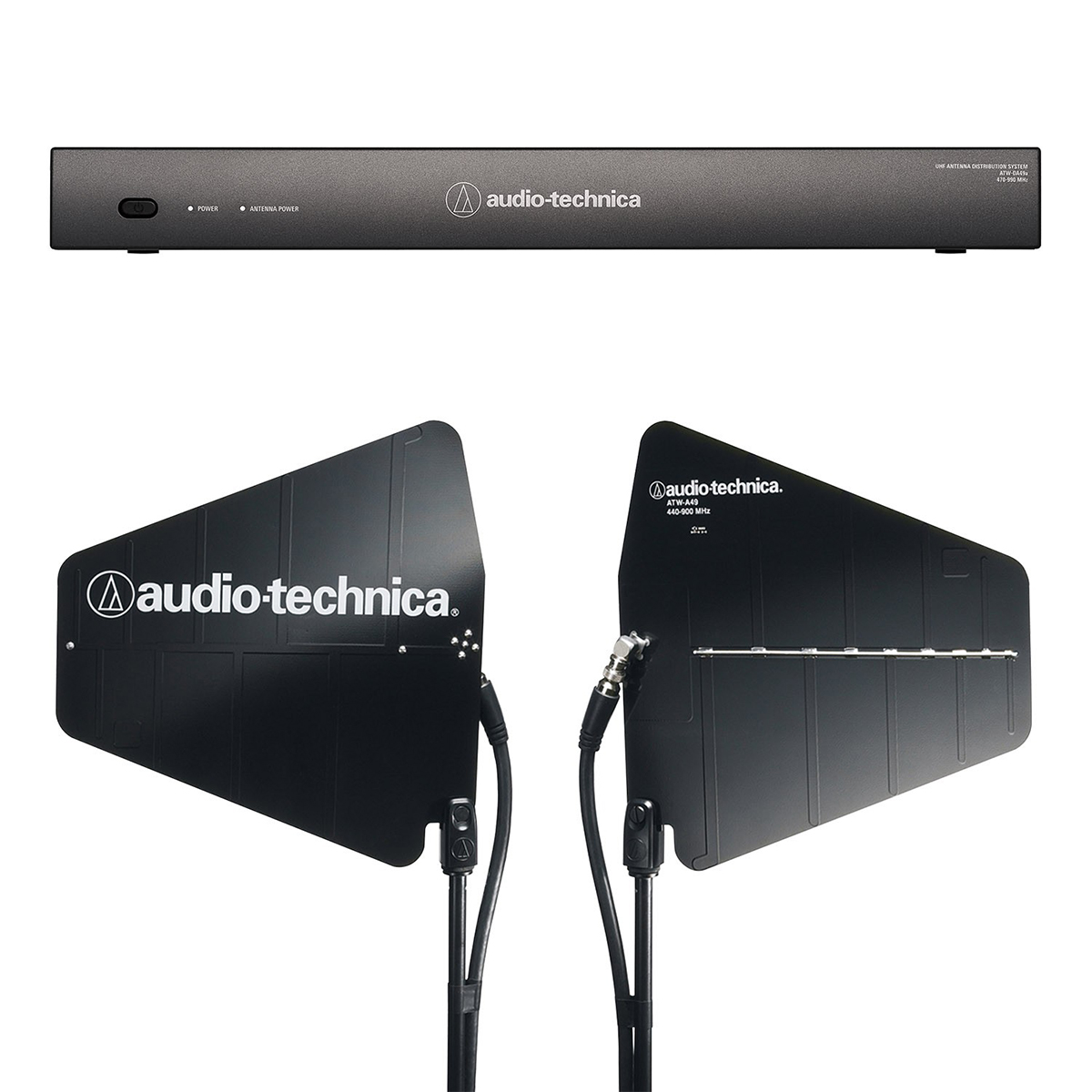

Audio-Technica ATW-DA49A 4-Way UHF Wideband Antenna Combiner Distribution Set
The ATW-DA49a is a UHF active unity-gain diversity antenna distribution system that enables one pair of antennas to feed multiple wireless systems. One ATW-DA49a unit can support up to four wireless receivers. A wide-band unit that operates over a nominal 470-990 MHz range, the ATW-DA49a is designed to complement Audio-Technica’s wireless systems. It is also suitable for many other wireless systems (with external BNC antenna connections) operating within the 470-990 MHz range.
Hire Now
Rental
4-Day: £48.00 inc. VAT
Week: £96.00 inc. VAT
What's Included
Rental2 xATW-A49a Wideband Dipole Antenna (470-950MHz)
Rental1 xATW-DA49a 4-Way UHF Wideband Antenna Combiner Distribution Unit
Rental2 xK&M 27105 Microphone Boom Stands
Rental2 xMicrophone Clips
Rental2 xRG58 Antenna Cable - Medium Length (3m - 5m)
Rental2 xRG58 Antenna Cable - Short Length (1m)
Description
Operation is possible with both directly connected antennas and remote antennas. In addition to the four antenna outputs, there is one cascade output per channel which additional distribution systems can be connected to for larger installations. Both antenna inputs provide antenna power for active antennas or boosters.The ATW-DA49a provides a high OIP3 (+ 32 dBm) for maximum protection against intermodulation.
Product Features
- Active UHF diversity antenna distribution system
- Wide-band 470-990 MHz
- Enables one pair of antennas to feed multiple wireless systems (2x 1-in and 4-out + 1-cascade out)
- High OIP3 (+ 32 dBm) for maximum protection against intermodulation
- Provides antenna power 12 V / 250 mA max from each antenna input
- Includes Rack Mount Kit
- Designed to complement Audio-Technica’s wireless systems
- Suitable for many other wireless systems operating within the 470-990 MHz range
Product Specifications
Antenna & Distribution
- Antenna Power (optional): 12V DC, 250 mA max.
- Current Consumption: 200 mA ± 50 mA at 12 V DC
- Gain: +1.0dB typical (within specified bandwidth)
- Input: 2 x 1 inputs
- OIP3: +32dBm typical (within specified bandwidth)
- Output: 2 x 4 outputs + 1 cascade output
- Termination Type: BNC Female
- Operating Bandwidth: 470-990 MHz
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (centre positive) switched mode external power supply
Physical
- Dimensions: 420 x 180 x 144 mm
- Weight: 1.5 kg
- Accessories: PSU, rack ears (short), BNC cable x8
