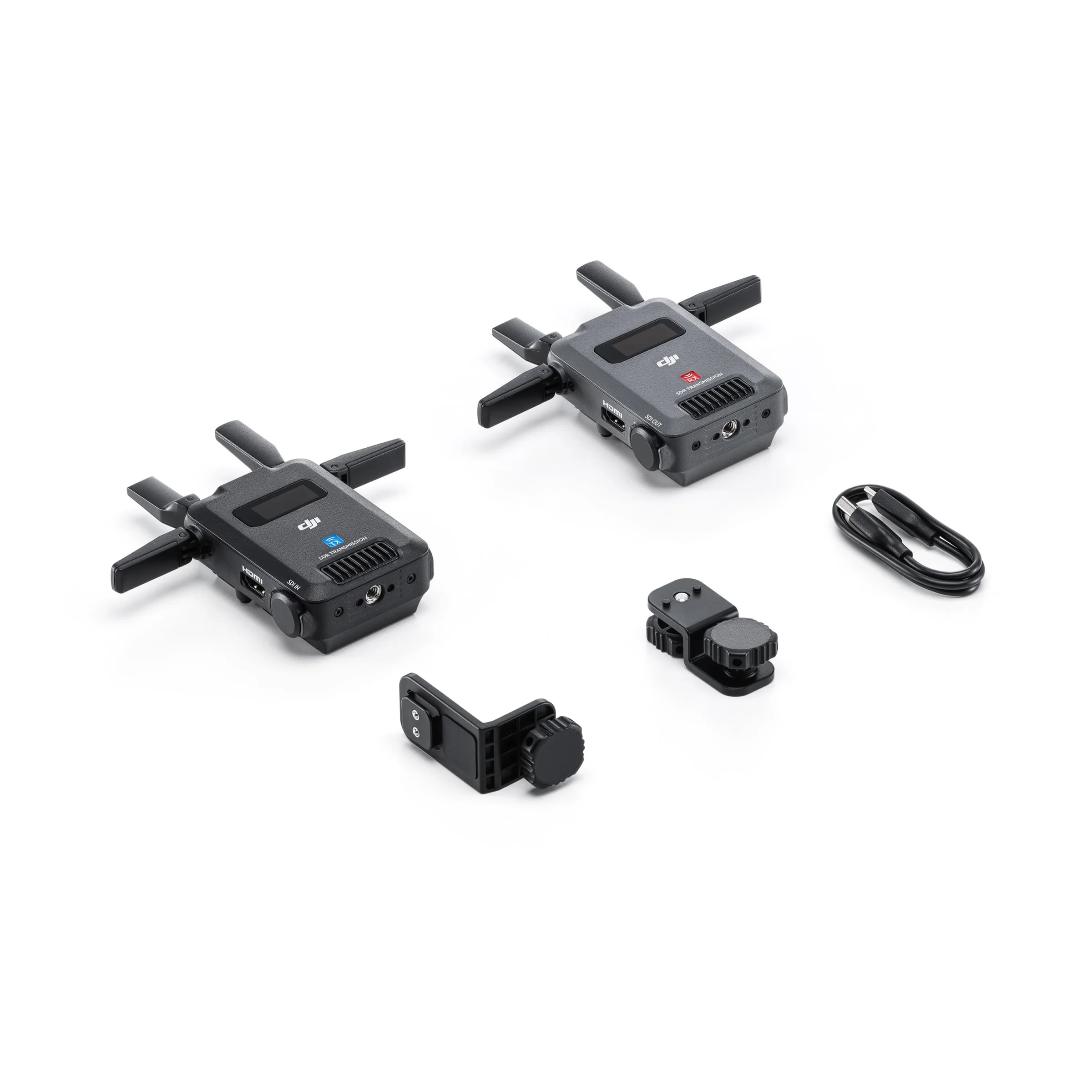

DJI SDR Transmission Combo - Wireless HDMI/SDI Kit (up to 3km Range)

Professional wireless video transmission system with HDMI and SDI connectivity, delivering low-latency 1080p monitoring up to 3km. Supports multiple receivers, dual-channel monitoring, and direct mobile device connection via Wi-Fi, ideal for live events, broadcast, and production environments.

Hire Now

Rental
4-Day: £54.00 inc. VAT
Week: £108.00 inc. VAT

What's Included

Rental1 xDJI SDR Transmission RX
Rental1 xDJI SDR Transmission TX
Rental2 xSMALLRIG 10500mAh Battery NP-F970 36W USB-C 3.5H Fast Charging Camera Battery (Black)
Rental2 xUSB-C to USB-C Charging Cables

Recommended for this Product

Description

The DJI SDR Transmission Combo is a professional wireless HDMI/SDI video transmission system designed for reliable, long-range monitoring in demanding event and production environments. Combining a compact transmitter and receiver, it delivers stable, low-latency video transmission over distances of up to 3km, making it ideal for live events, multi-camera shoots, and broadcast workflows.

Supporting both HDMI and SDI input/output, the system integrates seamlessly with professional cameras, vision mixers, and monitoring setups. The receiver can output simultaneously via HDMI, SDI, and USB-C, allowing flexible routing to multiple displays or recording devices.

The system utilises DJI’s SDR transmission technology, offering enhanced signal stability, strong interference resistance, and improved penetration in complex RF environments such as busy event venues or exhibition halls.

Designed for modern workflows, the transmitter can also connect directly to smartphones or tablets via Wi-Fi, enabling cost-effective monitoring without requiring additional receivers. Multiple monitoring outputs can run simultaneously, including SDR and Wi-Fi feeds, making it ideal for larger production teams.

Compact and lightweight, both transmitter and receiver units are easy to rig to cameras, truss, or handheld setups. With support for multiple receivers, including broadcast mode with unlimited endpoints, the system is well suited to directors, lighting teams, and technical crew needing real-time video access across large-scale events.

Technical Specifications

  • Wireless video transmission system (transmitter + receiver)
  • Range: up to 3km (line of sight)
  • Resolution: up to 1080p / 60fps
  • Inputs: HDMI & SDI (transmitter)
  • Outputs: HDMI, SDI & USB-C (receiver)
  • Simultaneous outputs: up to 3 SDR + 2 Wi-Fi streams
  • Wi-Fi monitoring via smartphone/tablet (no receiver required)
  • Transmission technology: DJI SDR (enhanced stability & interference resistance)
  • Dual operating bands: 2.4GHz & 5.8GHz
  • Audio support via 3.5mm jack
  • Latency: ultra-low (designed for real-time monitoring)
  • Multi-device support: broadcast mode with unlimited receivers
  • Weight: approx. 145g per unit
  • Compact form factor with foldable antennas
  • Power: USB-C / external battery solutions
  • Mounting: suitable for camera rigs, cages, and production setups
